Automotive

Autonomous Vehicles, Connected Cars and Electric Vehicle are the latest trends in Automobile Industry. Modern car features such as collision assist, parking assist, autopilot and alike uses advanced control systems to interpret and identify appropriate navigation paths, obstacles and relevant signage. These new technologies requires more complex manufacturing processes and rigorous testing & inspection of components.

FASA designs and build systems that automates the production, testing and inspections of critical automobiles components. Our latest inspections systems integrates AXI technology for process optimization and defect detections. Our advanced test and vision technology incorporating robotic system will help auto manufacturers overcome the challenges of functional safety of the products for new generation vehicles.

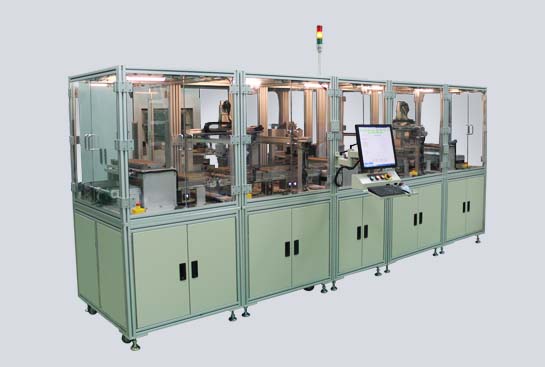

IGBT TESTER WITH CO2 MARK MACHINE

Perform various Hot and Cold testing such as Dynamic & Static Testing and performs CO2 Laser Marking on 7 types (or more) of Insulated-Gate Bipolar Transistor (IGBT).

Product: Insulated-Gate Bipolar Transistor (IGBT) used in electric vehicle (EV).
Handling: Tray Loader, Conveyor System, Transfer Station, Hot and Cold Station
Function: Cold Test, Hot Test, CO2 Laser Marking, Barcode Reader.

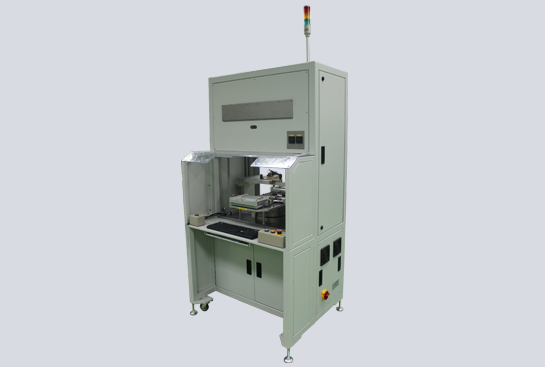

Semi-Automatic Test Adapter with Rotary Table

Designed to perform various Hot testing such as Dynamic & Static Testing on various types (6 or more) of Insulated-Gate Bipolar Transistor (IGBT).

Product: Insulated-Gate Bipolar Transistor (IGBT) used in electric vehicle (EV).
Handling: Fixture, Rotary Table.
Function: Hot Test such as Dynamic & Static Testing.

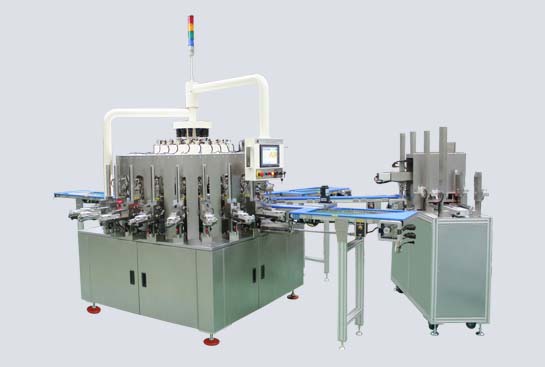

Shock Absorber Valve Assembly System

A high-speed & high-precision system designed to perform automatic assembly of the Shock Absorber Valves used in Automotive products.

Product: Shock Absorber Valve
Handling: Index platform, Input Cam PnP and Output PnP, Part Feeder, Input Conveyor with Singulator for Guide Pin, Case and Nut supply
Function: Assembly, Height Check, Tightening using standard Daiichi Dentsu nut-runner system

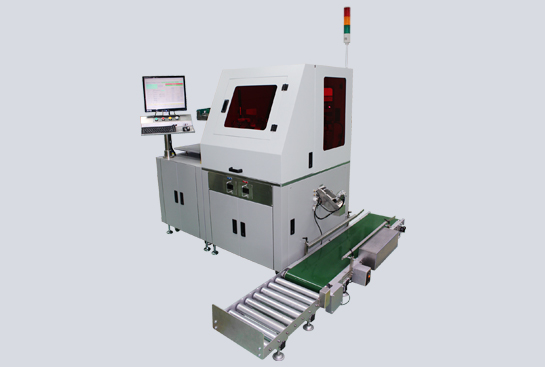

FASA BS 360X Automatic Optical Bolt Sorting Machine

Incorporates Patented Optical Technologies to perform automatic optical inspection of a wide range of fastening screws and bolts used in critical applications. Uses special design optics and highly sophisticated software algorithms meet the fastener requirements of Automotive, Aerospace, Electronics & other industries towards zero defects and high productivity.

Product: Handles wide range of Bolt types and sizes from M3 to M20 including Hex Flange Bolt, Hex Bolt, Carriage Bolt, Hex Socket Cap Screw, Wheel Bolt, Six Lobe
Handling: Vibratory Bowl and Linear Feeder, Rotary Dial, Dual Sorting
Function: Vision Inspection, Sorting
Inspection: Side view up to 100mm bolt length, Top view for Head Surface defects, 360 degree for Head Side cracks

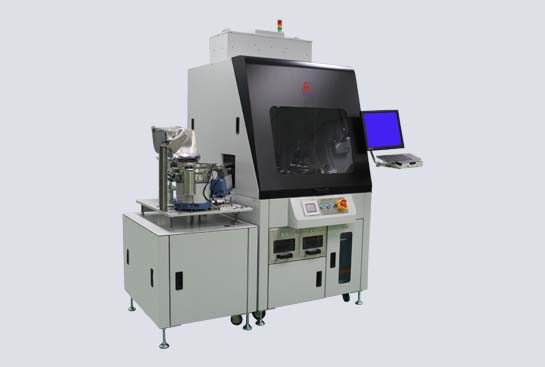

NS 600X Automatic Optical Nut Sorting Machine

Incorporates Patented Optical Technologies to perform automatic optical inspection of a wide range of fastening nuts used in critical applications. Uses special design optics and highly sophisticated software algorithms meet the fastener of Automotive, Aerospace, Electronics & other industries towards zero defects and high productivity.

Product: Handles wide range of Nuts types and sizes from M3 to M20
Handling: Vibratory Bowl and Linear Feeder, Rotary Dial, Dual Sorting
Function: Vision Inspection, Sorting.
Inspection: Side view for Nut thickness, Top & Bottom views for Surface defects, 360 degree for Side cracks.




For more information or request brochure on our products or services, please contact us.
